How a worn chain ruins your drivetrain?

Every time you ride, your bike’s chain endures significant stress. With every minute of pedaling, about 44,000 individual chain parts move, resulting in 320,000 instances of surface friction.

All of this occurs on a component that is close to the ground, constantly exposed to dirt, moisture, and other elements.

As your chain wears down, friction within the drivetrain increases, gear shifting becomes less precise, and eventually, other drivetrain parts will start to wear out.

Replacing your chain at the appropriate time can not only save you money but also make your riding experience smoother and more enjoyable.

Understanding Chain Wear.

Over time, the pins and inner plates of a chain wear out, which increases the length (or pitch) of each link.

This gradual increase in chain length is often referred to as “chain stretch,” though the metal doesn’t actually stretch to a noticeable degree.

The pitch of a new chain link measures half an inch (12.7 mm) between pins. Together, an inner and outer link measure exactly one inch in length.

Bike chainrings and cassette cogs are built to match this exact measurement so that a new chain sits properly on the cog.

As the chain wears and its pitch lengthens, it rides higher on the teeth, speeding up the wear on the cogs until the chain eventually skips over the top. This “chain skip” is something you definitely want to avoid, especially when applying force to the pedals.

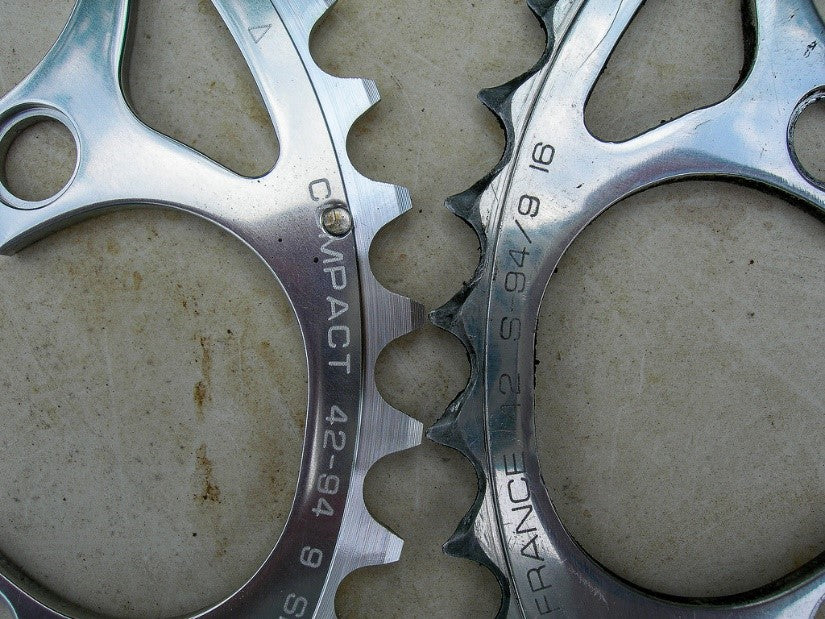

Once the chain is worn, both the cassette and chainrings wear down with it, leading to a “hooked” appearance as the teeth deform from contact with the high-riding chain.

Changing your chain before it becomes excessively worn can significantly extend the life of your drivetrain components, such as the cassette and chainrings.

Spending around £40 for a new chain every few months can prevent you from having to replace more expensive parts later.

When Should You Replace a Chain?

There’s no exact rule for determining when to replace a chain, and there’s ongoing debate about what defines a “worn” chain. However, the guidelines provided here should help you get close to the right answer.

The lifespan of a chain depends on factors like your pedaling power, the type of chain lubricant you use, the conditions you ride in, how you shift, and the type of terrain.

Aside from cost savings, replacing a chain in a timely manner reduces the risk of it breaking at a critical moment and improves efficiency. Additionally, a worn chain creates more slack, leading to slower and less accurate shifting.

One way to test for chain wear is to pull the chain at the 3 o’clock position where it sits on the chainring. If the chain lifts away from the chainring easily, the chainring may be worn, which can be a dangerous combination.

Be sure to perform this test in a safe environment before heading out for intense riding.

If your chain lifts off the ring like this, it’s likely worn.

This happens because the chain’s pitch has lengthened and no longer fits the teeth properly. The image below shows how a new chain should look.

If your chain lifts more than this example of a worn chain, you may need to replace more than just the chain itself.

However, be cautious: worn chainrings can give a false reading, and a new chain installed on worn chainrings will show similar chain lift.

As pictured, a new chain will hardly lift from the ring.

For those using high-end components like Shimano Dura-Ace, Campagnolo Super Record, or SRAM Red, replacing chains regularly makes sense because the cost of new cogs is high. These parts can cost as much as an entry-level bike.

For lower-tier groupsets like Shimano 105 or below, where replacement chainrings and cassettes are more affordable, the decision to replace the chain frequently is more debatable.

However, if you value precise shifting, an efficient drivetrain, or regularly switch between different wheelsets, replacing your chain before it wears too much is a wise decision, regardless of your component level.

Why should I worry about it?

The argument for regularly replacing the chain is pretty obvious if you ride on Shimano Dura-Ace, Campagnolo Super Record, and SRAM Red groupsets, where cassettes and chainrings can cost as much as a fairly basic bike.

However, the question of cost-effectiveness becomes a trickier dilemma if you ride a 105-tier groupset or lower, where replacement chainrings and cassettes are much cheaper.

Nevertheless, if you value smooth shifting and an efficient drivetrain, replacing your chains regularly before they become heavily worn is an entirely sensible choice, regardless of how much your components cost.

Summary

A bicycle chain operates in extreme conditions – thousands of moving parts, immense friction, exposure to dirt and moisture.

Chain wear leads to increased friction – harder gear shifting and accelerated wear of the remaining drivetrain components.

"Chain stretching" – actually the wear of pins and links, which causes the chain to elongate.

Chain construction – a link is 12.7 mm, and a full two links equal 1 inch; chainrings are designed to this dimension.

Effects of wear on chainrings – the chain rides higher on the tooth, destroys it, and causes skipping; the characteristic wear pattern is known as "shark fins".

Proper chain replacement extends drivetrain life (cassette, crankset, derailleurs) and saves money.

Factors affecting durability – pedalling force, type of lubricant, riding conditions, shifting technique, terrain.

Symptoms of wear – the chain lifts off the chainring when pulled hard; excessive play; rough shifting.

Costs and cost-effectiveness – with more expensive drivetrain groups (Dura-Ace, Super Record, Red) regular replacement is a no-brainer; with cheaper ones (e.g., 105) it is also worth doing, for smooth operation and reliability.
